46215 - 115L Mobile Pantograph Oil Evacuator/Drainer

46215 - 115L Mobile Pantograph Oil Evacuator/Drainer

46215 - 115L Mobile Pantograph Oil Evacuator/Drainer

Waste oil evacuators take oil draining convenience and efficiency to the next level by sucking hot oil from engines and transmissions via the dipstick tube. The mobile reservoirs act as vacuum receivers operated by simple venturi and flow control valves. This allows the unit to be vacuum charged and emptied at will, and used independently of the air supply. Not having to lift vehicles or remove plugs increases efficiency.

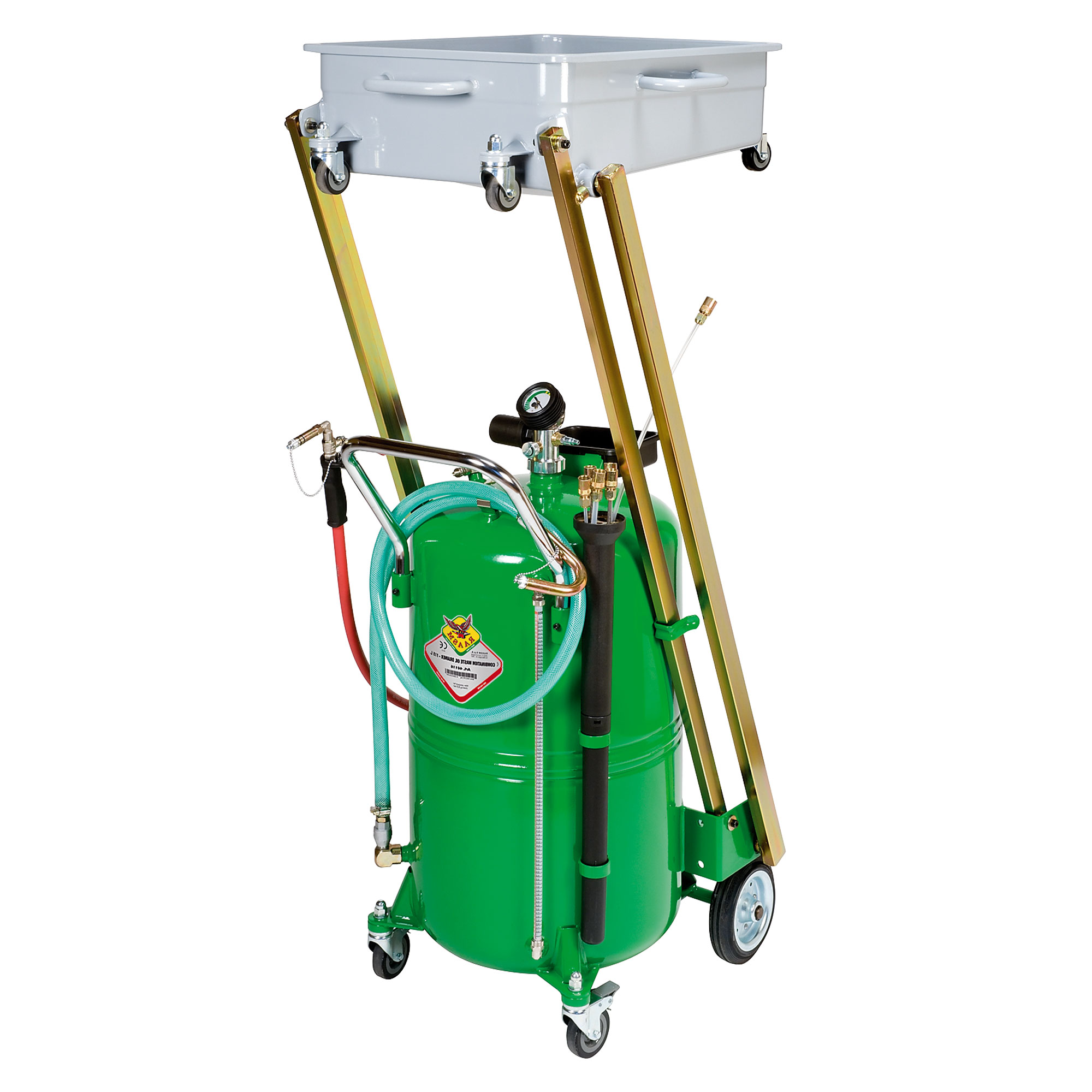

The RAASM pantograph oil evacuator/drainer is designed for truck workshops where vehicles are serviced in bays without pits or hoists. The pantograph mounted drain tray can be used at floor level or raised and is emptied by gravity when raised or vacuum when lowered. The unit doubles as an evacuator with a set of suction probes and 2 metre suction and drain hoses included.

  • Total Capacity: 115L

  • Bowl Capacity: 50L

  • Maximum Drainage Pressure: 7psi

  • De-pressurisation Time: 3 - 3.5 min at 94 - 101psi

  • Suction Speed: 1.5 - 2 L/min

  • Total Suction Capacity: 85 - 90L

  • Noise Level: 75dB
