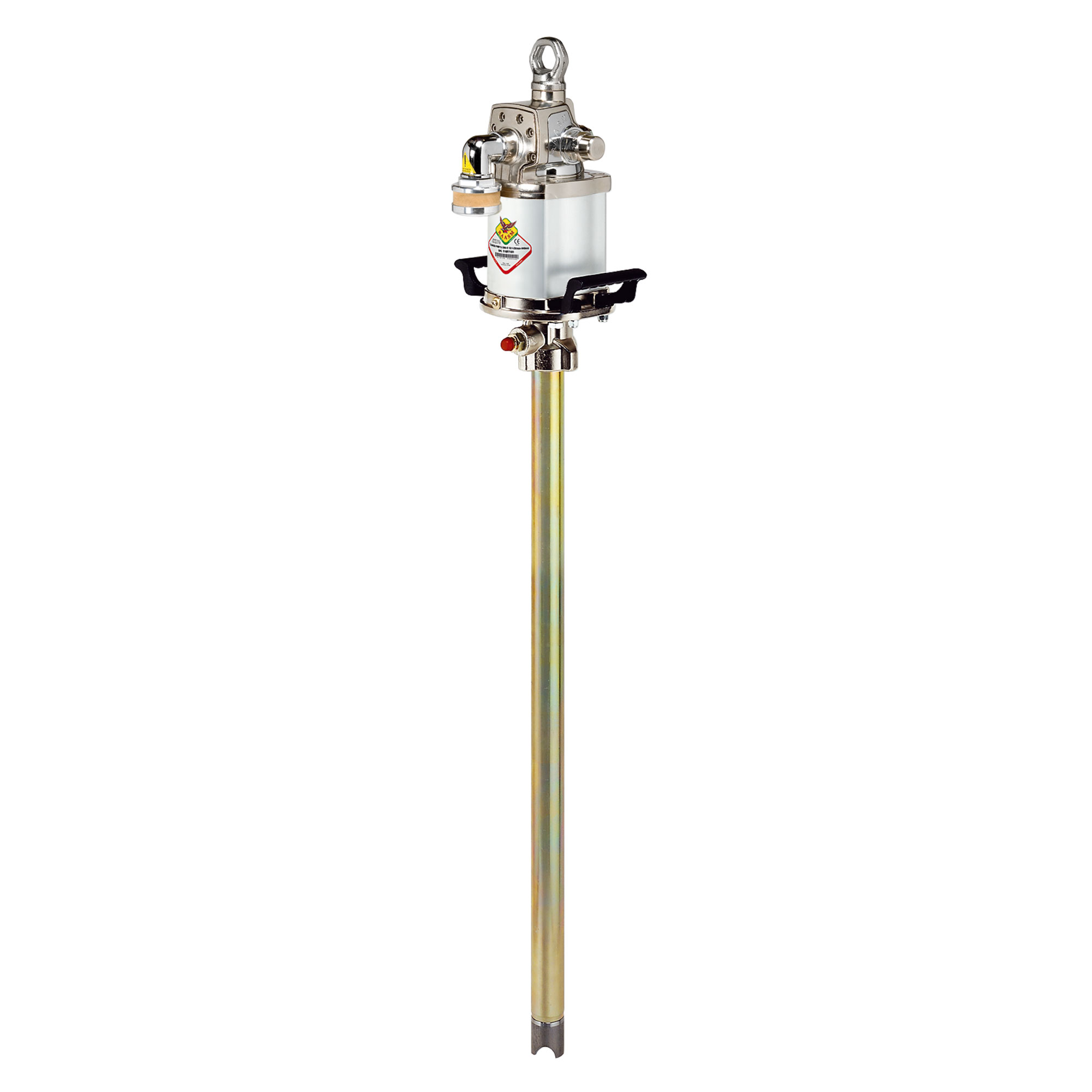

116F.181 - Air Operated Grease Pump

Low Pressure, High Volume Grease Pump.

The RAASM 1200 Series grease pumps are designed for transferring medium to high viscosity grease. Ideal for mounting to drums, the high quality components ensure reliable operation in the harshest of environments.

• Compression Ratio: 18:1

• Flow Rate: 17 kg/min

• Air Cylinder Diameter: 115mm

• Air Consumption: 2800 L/min (98.8 cfm) at 116psi

• Air Inlet Connection: F 1/2” G

• Fluid Outlet Connection: F 3/4” G

• Suction Tube Diameter: 45mm
