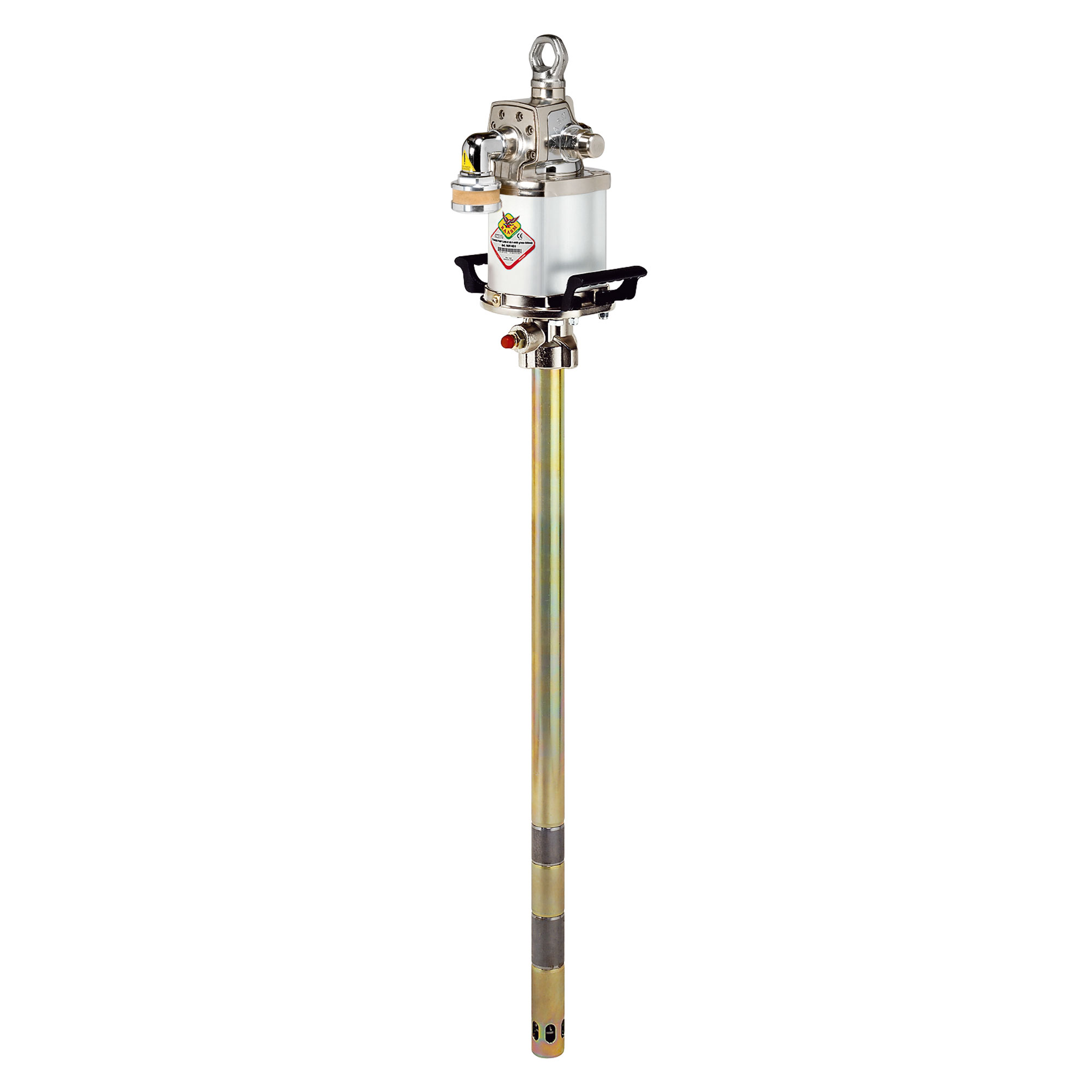

116F.751 - Air Operated Grease Pump

High Pressure, High Volume Grease Pump to suit 180kg Drums.

The RAASM 900 and 1200 Series grease pumps are designed for transferring medium to high viscosity grease at high pressures over long distances. Ideal for mounting to drums the high quality components ensure reliable operation. Typically found in large workshops and large centralised greasing systems.

• Compression Ratio: 75:1

• Flow Rate: 4.4 kg/min

• Air Cylinder Diameter: 115mm

• Air Consumption: 2800 L/min (98.8 cfm) at 116psi

• Air Inlet Connection: F 1/2” G

• Fluid Outlet Connection: F 1/2” G

• Suction Tube Length: 940mm

• Suction Tube Diameter: 45mm

Accessories

• Drum Cover: Ø 600mm, Catalogue Number 10.50

• Follower Plate: Ø 585mm, Catalogue Number 10.60
