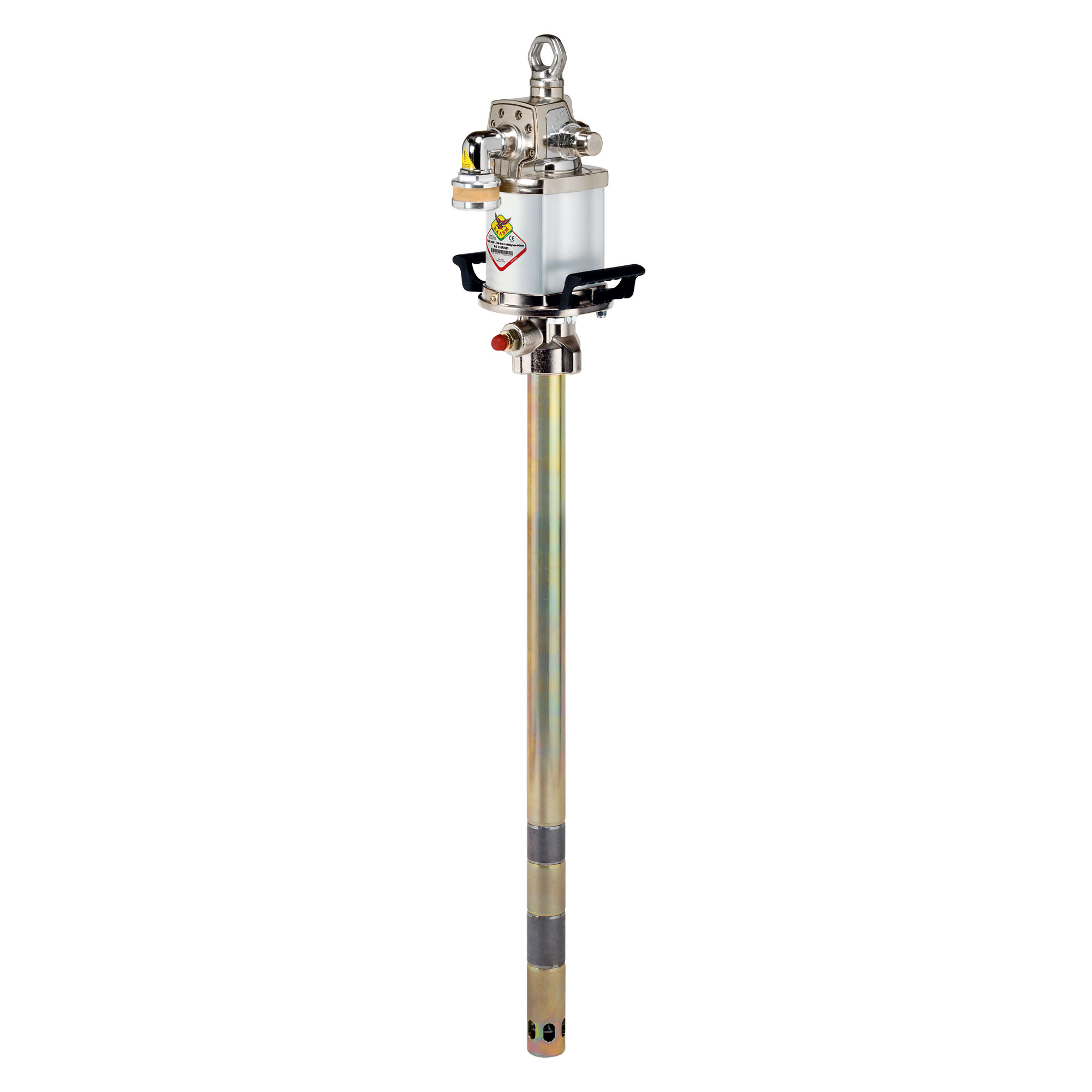

116F.401 - Air Operated Grease Pump

High Pressure, High Volume Grease Pump to suit 180kg Drums.

The RAASM 1200 Series grease pumps are designed for transferring medium to high viscosity grease. Ideal for mounting to drums, the high quality components ensure reliable operation in the harshest of environments.

• Compression Ratio: 40:1

• Flow Rate: 10 kg/min

• Air Cylinder Diameter: 115mm

• Air Consumption: 2800 L/min (98.8 cfm) at 116psi

• Air Inlet Connection: F 1/2” G

• Fluid Outlet Connection: F 1/2” G

• Suction Tube Length: 940mm

• Suction Tube Diameter: 50.8mm

Accessories

• Drum Cover: Ø 600mm, Catalogue Number 10.55

• Follower Plate: Ø 585mm, Catalogue Number 10.65
