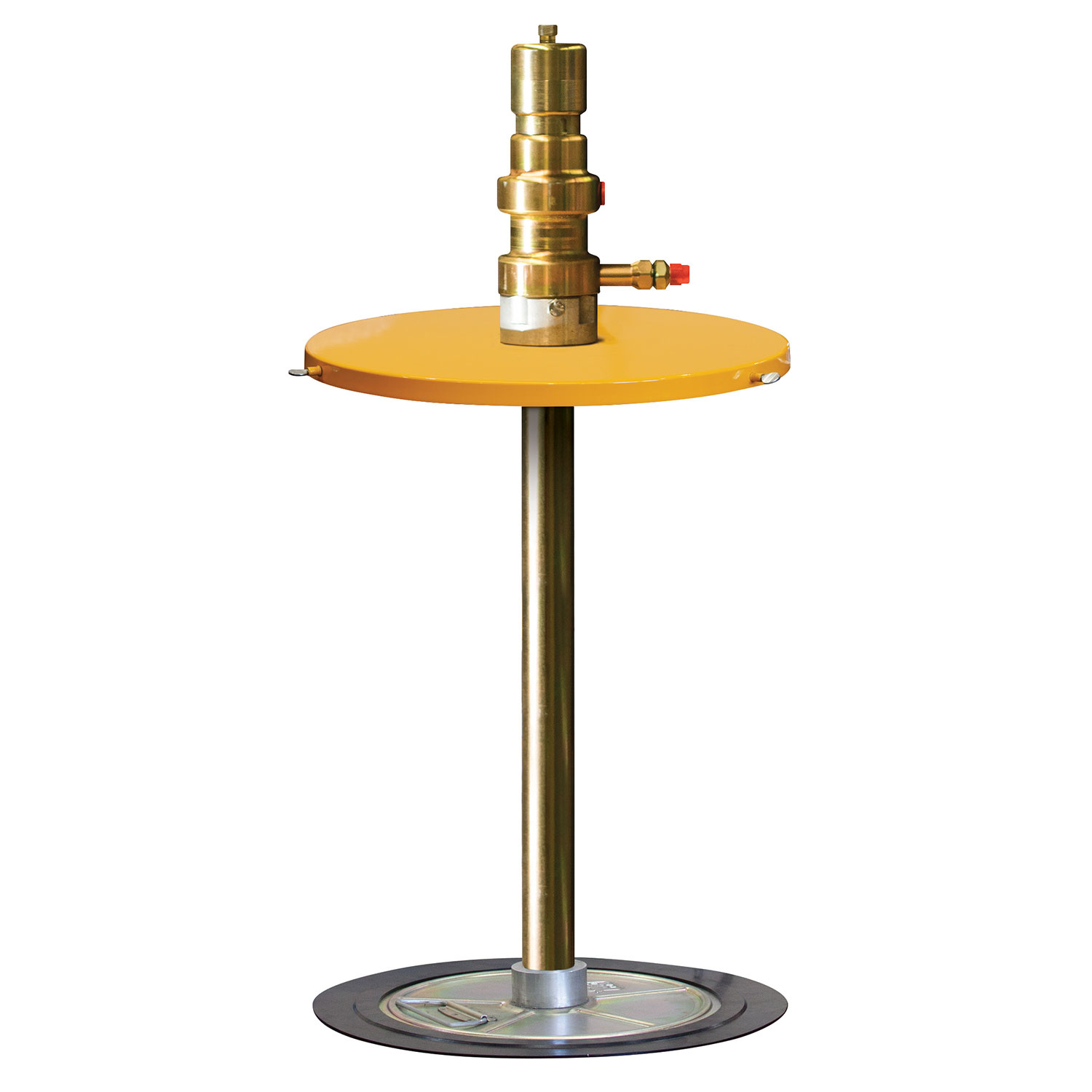

TPH3.55 - 55kg TPH3 Series Hydraulic Grease Pump Kit

Tecalemit’s range of hydraulic grease pump kits are designed and manufactured in-house. The hydraulic motor is ideal for high pressure automatic greasing systems and is installed to the collar, allowing for the entire setup to be simply mounted to any open top grease drum.

For use with 55kg drums, the pump can be powered by system hydraulics or by a custom Tecalemit power unit.

The hydraulic grease pump kits feature a steel nickel plated construction, quick release mounting, stainless follower with moulded drum wiper seal and can be supplied with an optional low level switch.

Technical Specifications.

• Maximum grease pressure: 5,000psi (345bar).

• Grease output: 150cc/minute.

• Greases: grade 0 - 2.

• Recommended oil flow: 6 litres per minute (500psi).

• Oil ports A and B: 1/4” BSPP Female.

• Grease outlet: 1/4” BSPT Male.

• Maximum oil temperature: 100°C.

Pump Kit Items

• TPH1.55 Bare pump

• V17091 Drum cover

• BK8150 Follower plate

• BK8159 Guide Tube O-ring

• SMA1108.16S316 Set screw

• V22691 Drum adapter

• V18150 Locking nut

• V17109 Low level switch

Accessories and Repair Kits

• TPSH.PP24V6LPM Oil power unit

• TECGF150G Grease filter

• TPH1.S Pump seal ki
