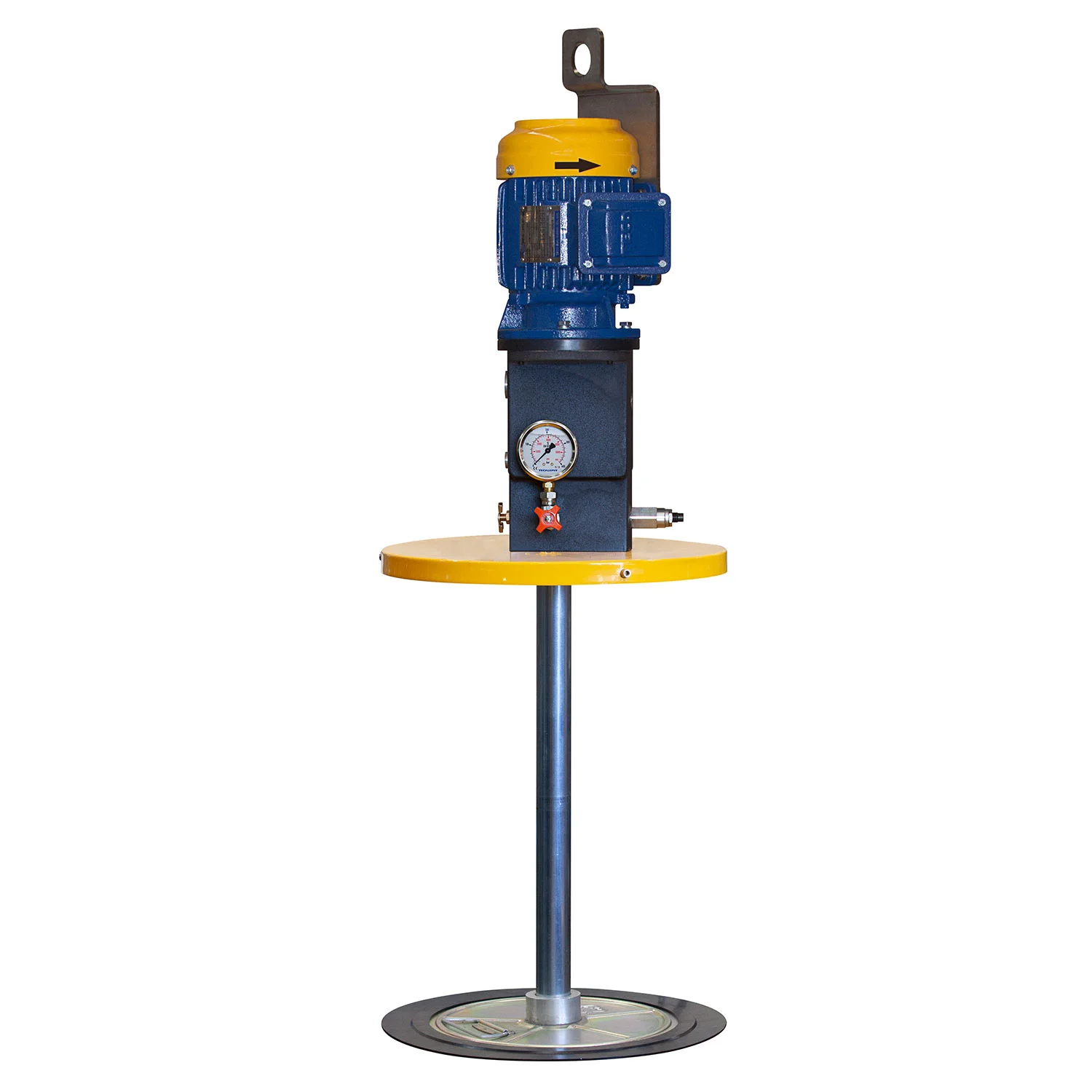

MLS.CPX3.2 - 55kg MLS Series Electric Grease Pump Kit

Tecalemit’s range of electric grease pump kits are designed and manufactured in-house and are ideal for automatic greasing systems. The pump is fixed by four mounting screws which can be installed to various size drum covers.

The electric motor offers the flexibility to pump grease in locations where air is not available or of a poor quality, and can cause damage a traditional air operated pumps and equipment.

The electric grease pump kits feature a cast iron motor and fan, stainless steel lifting bracket, stainless follower with a moulded wiper seal and can be supplied with an optional low level switch.

Technical Specifications.

• Proven delivery of 18,000kg @ 4,200psi.

• Maximum grease pressure: 4200psi (290bar).

• Grease output: 150cc per minute.

• Greases: grade 0 - 2.

• Grease outlet: 1/4” BSPP Female.

• Available with various brand meters.

• Power: 0.37 kW.

• Voltage: 415V 3 Phase, 50Hz.

• RPM: 1,400.

• Rating: IP66.

• Pressure gauge and isolator valve.

Pump Kit Items

• M703CPX3.2 Bare pump

• V17091 Drum cover

• BK8150 Follower plate

• BK8159 Guide Tube O-ring

• SWA1105.6 x4 pump mounting bolts

• 28463.7 x4 spring washers

• WWA1005 x4 flat washers

• V17105 2m outlet hose

Accessories and Repair Kits

• V17109 Low level switch

• TECGF150G Grease filter

• MLS.SK Pump seal kit
